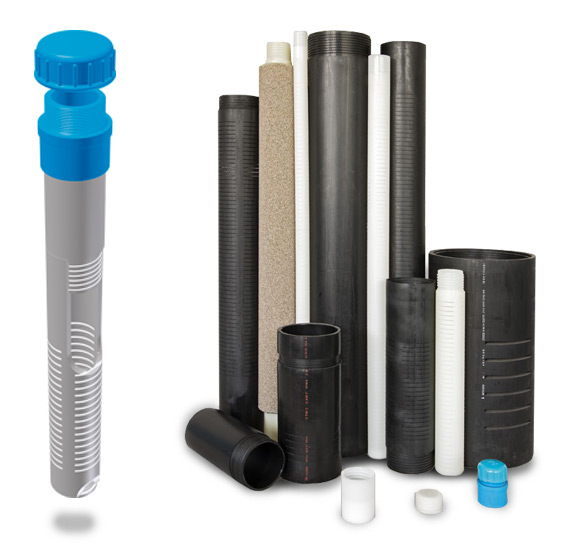

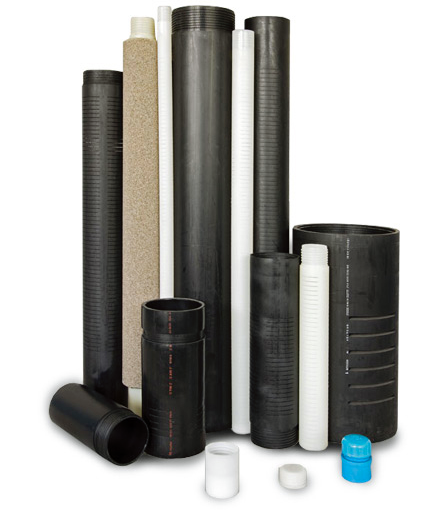

Boode HDPE Screen / casing

Boode HDPE screen and casing is designed for site investigation & monitoring use, particularly in applications where there is ground contamination.

Boode offers 'natural' carbon-free HDPE screen and casing (32 mm to 63 mm) where hydro-carbon sampling is needed.

For larger wells Boode offers black HDPE with a range of diameters from 75 mm up to 315 mm.

Advantages of Boode HDPE



  • Custom made solutions
  • Various lengths and slot sizes possible
  • Can also be made as BGP (gravel packed)





Technical details Boode HDPE

Outside
Diameter in mm		 Inside
Diameter in mm		 Wall
Thickness in mm		 Base
Material
PE		 Pressure
PN		 Classe
SDR		 Weight
per
metre		 Minimum
slotsize
in mm		 Thread length
in mm connection
type C
32.2*
40*
50*
63*
75
90
110
125
140
160
200
250
315		 25.0
32.6
40.8
51.4
61.4
79.2
96.8
110.2
123.4
141.0
176.2
220.4
277.6		 3.6
3.7
4.6
5.8
6.8
5.4
6.6
7.4
8.3
9.5
11.9
14.8
18.7		 80
80
80
80
100
100
100
100
100
100
100
100
100		 16
12.5
12.5
12.5
16
10
10
10
10
10
10
10
10		 9
11
11
11
11
17
17
17
17
17
17
17
17		 0.33
0.43
0.67
1.04
1.47
1.46
2.17
2.77
3.48
4.55
7.10
10.60
16.70		 0.30
0.30
0.30
0.30
0.50
0.50
0.50
0.50
0.60
0.60
0.60
1.00
1.00		 38
38
38
45
45
45
45
45
60
60
70
85
90


​​​​​​​* Natural (white) HDPE: Carbon free for environmental installations.
Connections: C-Type flush butt male & female with trapezoidal threads.
Lengths: As required, maximum 6mts.
Slot configuration: Horizontal.
Other diameters on request available.
