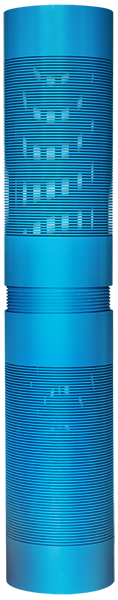

Boode CSS™ - Continuous Slot PVC Screen

Boode CSS PVC Screen is the only PVC continuous slot screen on the market and is particularly effective for water wells where a high flow rate is required.

An evolution from Boode Select screen, CSS offers exceptionally high percentage open areas, greater depth capability with increased collapse resistance.






Advantages of Boode CSS Screens

  • Advanced solid construction suitable for installation to depths of ±400 metres
  • Screen is provided with C-Type female flush butt joints with male adaptor
  • Maximum open area of 50%
  • Suitable for low yield water bearing strata.
  • Lightweight and easy to handle





Technical details Boode CSS

Outside
diam mm
Wall
Thickness mm
Inside
diam mm
Weight
per m kg
Type of connection Diameter over connection Tensile strength kg​​​​​​​ Possible slotwidth mm​​​​​​​
56
75
90
125*
140
165
200
2.5
3
4.5
6
6.5
7.5
7
44
58
72
104
116
139
172
0.82
1.39
2.10
3.54
4.69
7
7.56
A
C
C
C
C
C
C
61
75
90
125
140
165
200
650
1250
1450
2600
3100
4900
6200
0.3-3
0.3-3
0.3-3
0.4-3
0.4-3
0.5-3
0.6-3


​​​​​​​* With external ribs.
Lengths: As required, maximum 3 mtr.
CSS™ screen is made from high impact resistant uPVC.

Average percentage of open area

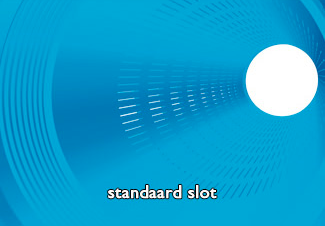

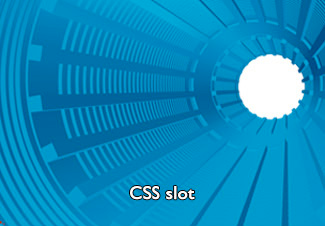

Standaard Slot Screen (lengtwise)     Continuous Slot PVC Screen (CSS)

4% 0.30 mm 0.30 mm 6%
5% 0.40 mm 0.40 mm 8%
6% 0.50 mm 0.50 mm 10%
9% 0.75 mm 0.75 mm 15%
11% 1.00 mm 1.00 mm 20%
13% 1.25 mm 1.25 mm 25%
16% 1.50 mm 1.50 mm 30%
20% 2.00 mm 2.00 mm 40%
25% 3.00 mm 3.00 mm 50%
28% 4.00 mm
